Semiconductor Laser

Code: IPC-2588-L

This laser (IPC-2588-L) emits an intense monochromatic red beam of wavelength 630m at 0.9mW (Class II operation). Typical beam divergence is approximately 1 millirad. The laser is ideal for the demonstration of the behaviour of light in a visually effective way, reinforcing the practical work carried out by pupils using white light. It is an essential tool to develop basic understanding of the passage of light through different media, slits etc. The laser beam can be modulated by applying an external digital or analogue waveform to the 3.5mm jack socket on the rear panel. Alternatively the beam can be modulated by the internal generator which produces 0.1µs pulses at approximately 1MHz. This allows speed of light experiments to be easily performed. The passage of light through light guides and optical fibres can be demonstrated by filling a glass or plastic tube or U-tube with very dilute milk.

The growth of laser based communication systems and research into the use of lasers in computers of the future make this an essential piece of equipment to bring up-to-date relevance into teaching.

The laser is powered by a 6LR61 (PP3) battery or external smoothed and regulated supply, has adjustable focus, no warm up time and has a key operated safety switch. Housed in a robust anodised aluminium case. Supplied with key.

A document containing descriptions of a number of standard experiments and investigations which can be performed using this Semiconductor Laser 630nm has been compiled by us.

Accessories

Modulated Laser Receiver IPC-2125-L
Stand and Rod IPC-2397-L

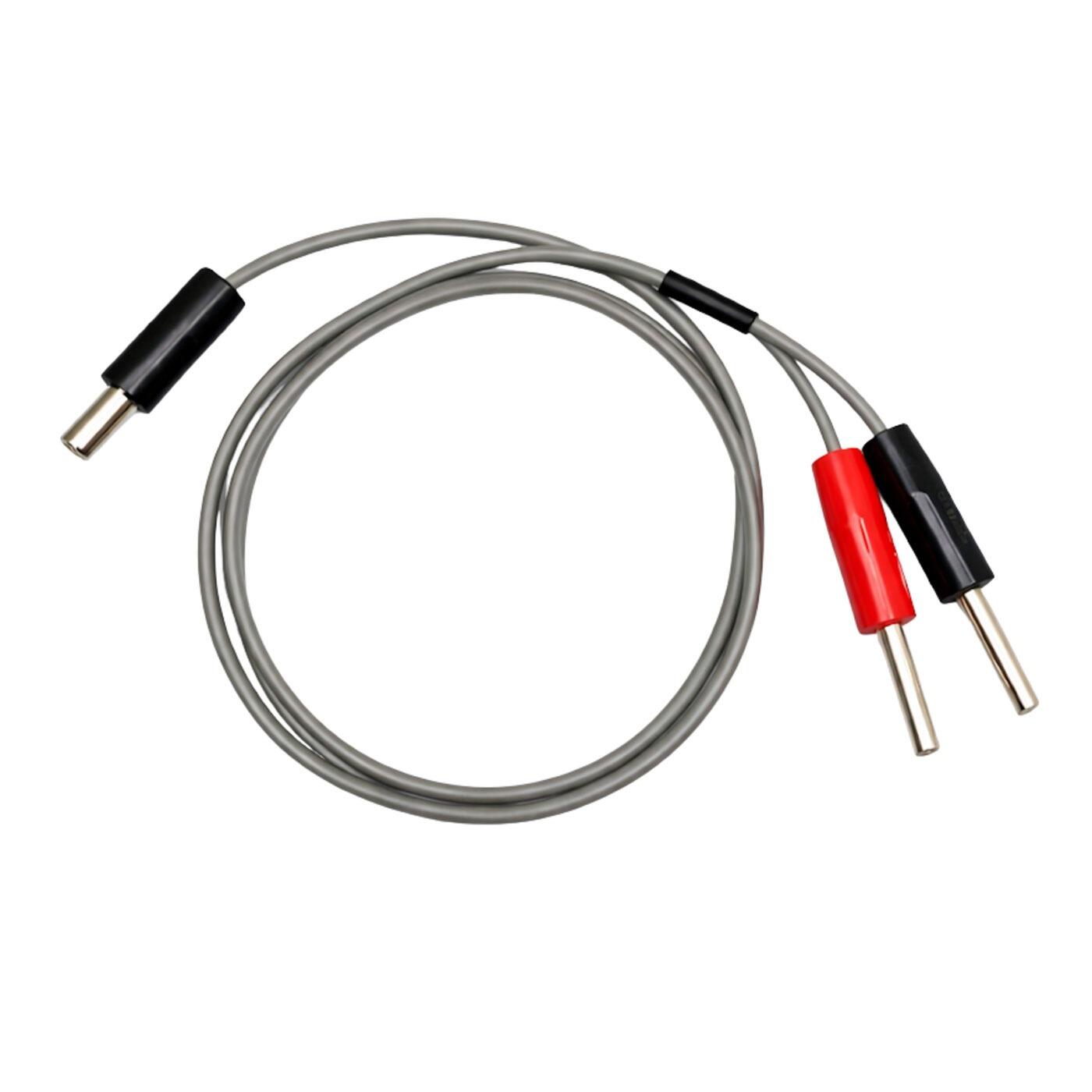

Laser PSU Lead IPC-2610-L

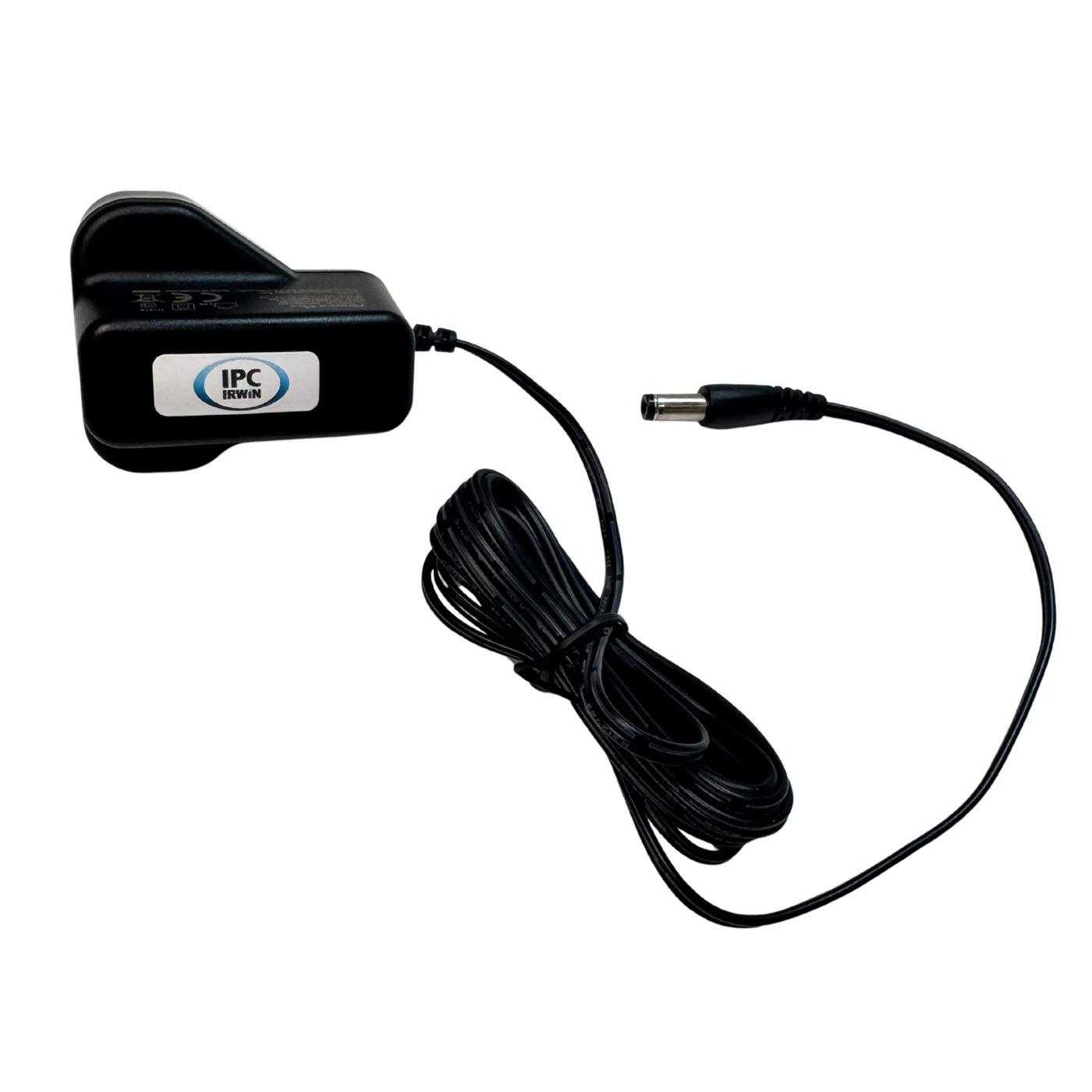

Laser Power Supply & Lead IPC-2620-L
Spare Key (round) IPC-2492-L
Spare Key (flat) IPC-2491-L


Description: Semiconductor Laser

Part Number : IPC-2588-L (without stand & mounting rod) & IPC-2600-L (with stand & mounting rod)

Electrical Supply : 9V Battery (type: PP3) or external 8-12VDC supply (2.1mm plug).

Dimensions : 55 x 150 x 65mm overall

Mass : 0.35kg

Laser Output Wavelength : 630nm

Laser Output Power : 0.9mW Typical (0.95mW Max.)

Laser Beam Divergence : 1 millirad approx.

Laser Modulation Frequence : 1MHz (Internal Operation)
