Modulated Laser Receiver

Code: IPC-2125-L

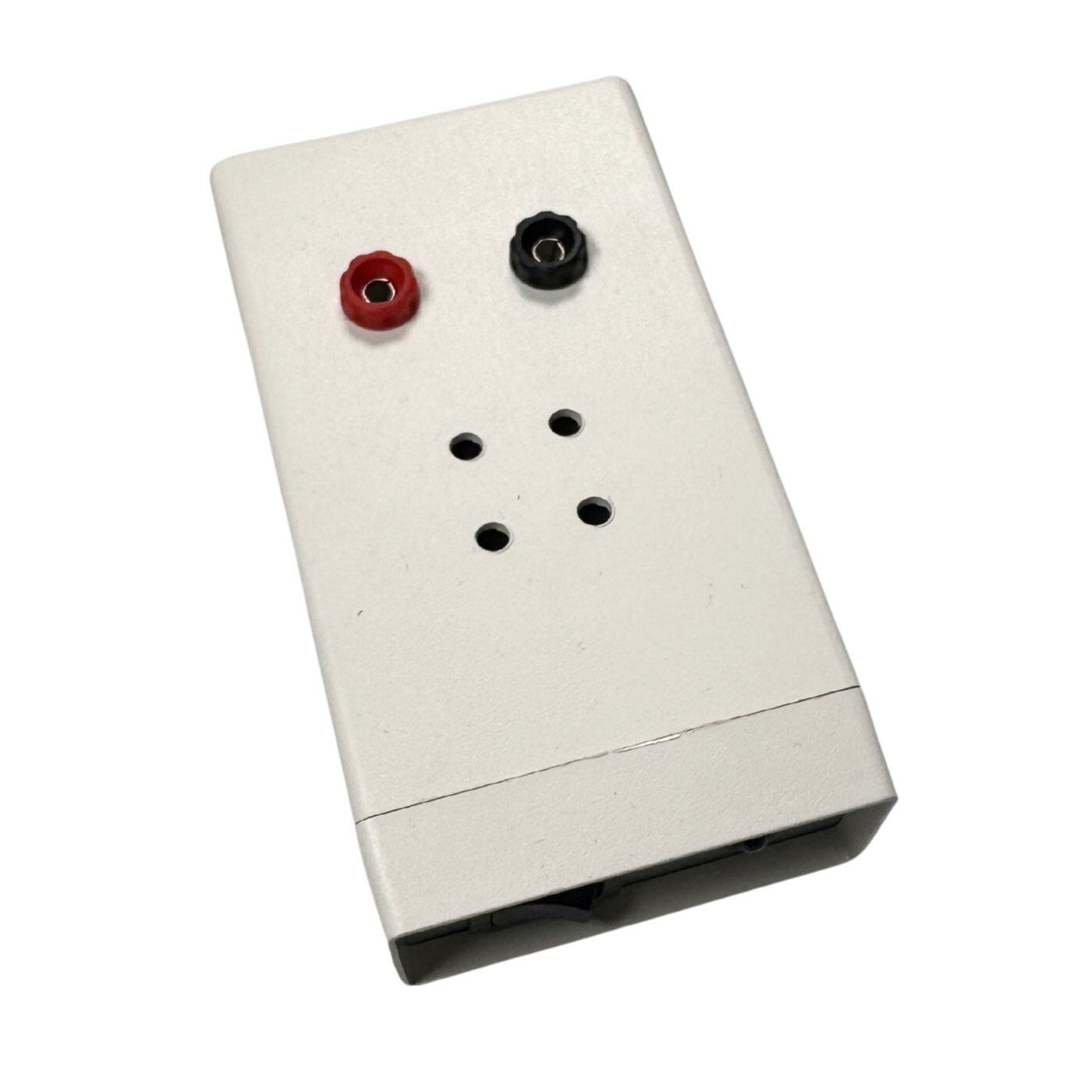

For detection of modulated laser or other light sources over a wide frequency range (IPC-2125-L). The output is available from two 4mm sockets and through the built in loudspeaker if the modulation is in the audio range. May be used with a modulated laser to detect analogue or digital data including high frequency pulses used to determine the speed of light. The receiver has a frequency range of 100Hz to 5MHz and is powered by a 9V (PP3) battery.

The receiver is ideally matched to work with our Semiconductor Laser 630nm (IPC-2588-L) and together can perform a number of experiments.

For further information a document containing descriptions of a number of standard experiments and investigations using both the Modulated Laser Receiver and Semiconductor Laser 630nm has been compiled by us.

Description : Modulated Laser Receiver

Part Number : IPC-2125-L

Electrical Supply : 9V

Battery (type: PP3)

Dimensions : 68 x 120 x 36mm overall

Mass : 0.18kg

Frequency Range : 100Hz to 5MHz


Earn 0 Reward Points

£0.00 £66.49 + VAT
