Powerswitch PSU 4 Pack within a Gratnells Tray

Our compact power supply now supplied in a 4 pack with a Grantells deep tray for ease of storage. Offering 2, 4, 6, 8, 10, and 12 volts at currents of up to 5A. Both dc and ac outputs may be used simultaneously up to the rated output. The output is protected by a push button cut-out. The unit is 2A fused on the back panel and comes complete with a moulded mains lead and plug. 4 units are designed to fit in a deep Gratnell tray.

DESCRIPTION.

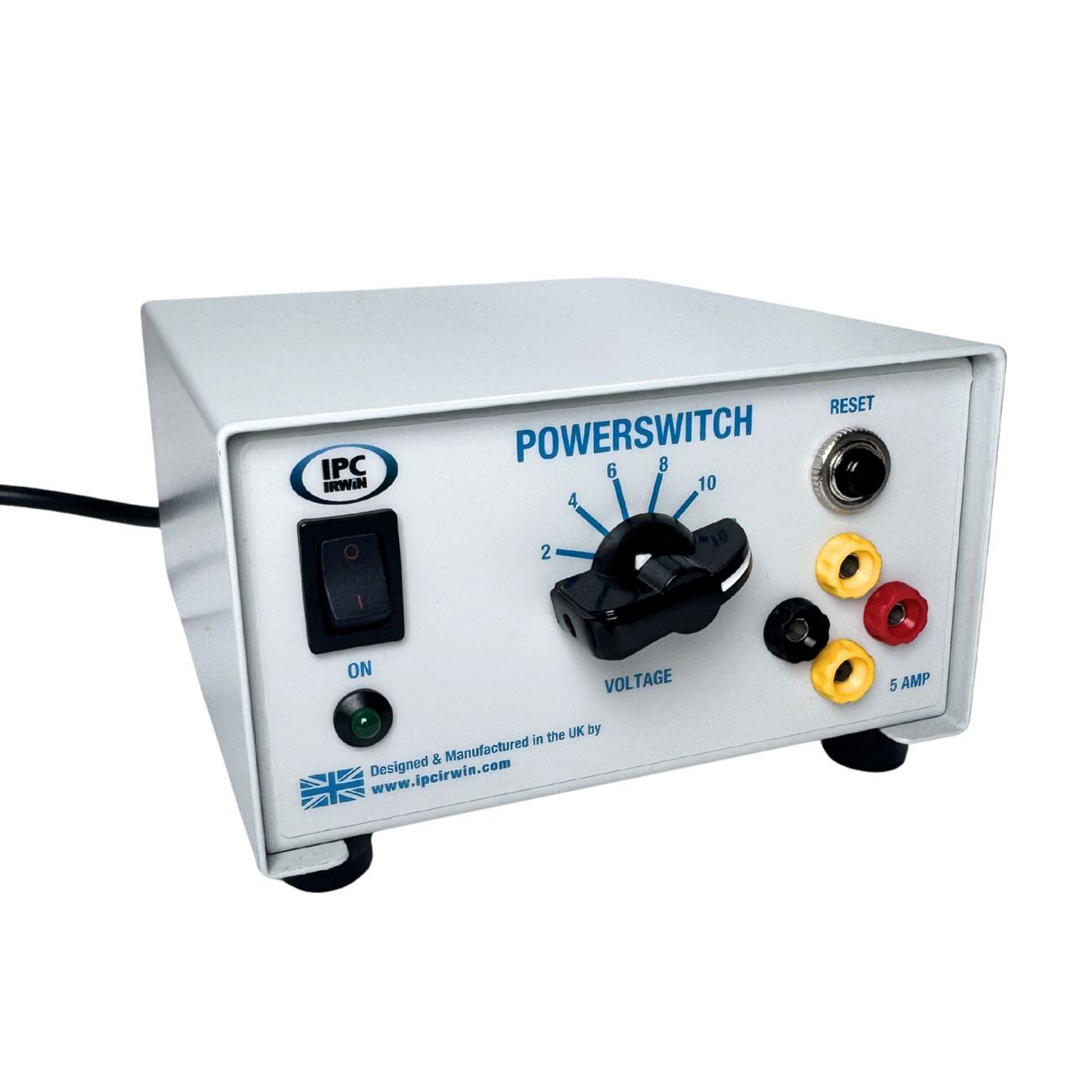

The IPC Irwin Powerswitch PSU incorporates a rotary voltage switch and offers 2, 4, 6, 8, 10 & 12V in both AC and DC up to a maximum of 5 Amps, the DC output is a fully rectified, nonsmoothed voltage. Both outputs are unregulated which means the output voltage will vary in relation to the amount of current being drawn, for a precise voltage a voltmeter should be used. Both outputs may be used simultaneously up to the rated output current of 5 Amps (combined). For safety, the output is protected by a simple push button thermal cut-out.

SPECIFICATIONS. Electrical Supply = 220-240VAC, 50-60Hz
Dimensions = 130 x 140 x 70mm overall.
Mass = 1.8kg
AC Voltage Range = 2, 4, 6, 8, 10 & 12V (non-regulated).
DC Voltage Range = 2, 4, 6, 8, 10 & 12V (full-wave rectified, non-regulated).
Output Current = 5 Amps Maximum (AC or DC or Combined).
Manufactured in the UK
